Refined the Ears

Well after some advice on FISD I decided that I needed to go for a 'Hero' lid, therefore I needed to fix the 4 ridged ears and resculpt into a 3 ridge ear. I am now on the hunt for flat/bubble black smoked lenses, decals & a trim solution.

I still need to sand and smooth down the fibreglass on the inside to allow me to attach neck rim seal

So I have finished forming and attaching the ears * filling/sanding (albeit needing so small detail refinement)

I am pondering whether to remove the fibreglass brow, which I was going to attach a standard U-shaped rubber strip to, in favour of attaching a neoprene rubber strip after filling and molding (Cheers to Aid on FISD for this suggestion - he's kindly sending me some :) )

Anyways, as you can see, I think I have made the details somewhat more refined than the very soft detail that was there before.

Next move on this lid is a paint job & some lenses :D

Positioning and forming of the Ears/Antenna

Well, I decided to use the terrible ears that came with the lid... and 'sculp' and fill the badly fitted areas in. I therefore ground down the ends of the antenna section and 'cut' lines in to form the raised bubble (x4) rectangles that sit on the antenna.

I then had to cut the piece in 2, as being rigid fibreglass it wouldnt bend around the 'oxygen' tubes, so I will attach the 2 piece, grind away the difference and fill with P38 and sand to shape

Vocoder Mod

So After seeing on a few websites (http://forum.whitearmor.net/lofiversion/index.php?t2425.html) that there was indeed a sort of 'chin' segment that runs behind the vocoder to the lip of the lid, I decided that I needed to fashion one.

I used aluminium mesh & P40 (see link in earlier blogs) to create the basic shape for this, and then after this had set I added P38 filler, smoother and tapered out the 'tube lines'.

This looks a little rough and may tidy this up a bit before painting, but I think it looks a lot better t hen when the bottom of the 'naf' fibreglass piece simply jutted out :D

In comes the Vocoder!

OK so, the vocoder.

The vocoder was pretty poorly molded, and had absolutely no defintion whatsoever. It simply looked like a lump of fibreglass shaped roughly like a elongated clamshell.

I therefore 'dremeled' out the lines that separate the vertical bars and sanded them smooth/rounded, I also reinforced the rear of the piece with a good lump of fibreglass (P40 - see previous posts)

I then made the mother of all boo boos! I tried to aligned the piece perfectly vertical with the helmet resting on a flat service, forgetting that the original helmet was not symetrical, and this re-mold (Or whatever it is) was probably even worse.

When I picked up the helmet when the epoxy was set and looked, the vocoder was sitting 10-15 degrees off!

1 screwdriver for leverage and a simple cutting tool (Stanley knife) later and it was off. I then resanded the rear and reapplied, this time with acrylic resin to give me time to constantly re-align the piece.

This has come out pretty good, but as you can see from the pictures above (thanks http://www.starwarshelmets.com/), the vocoder on there curves away under the chin, whereas mine simply is a flat piece which juts out.... so today's task is to mold a piece of aluminium mesh, fibreglass, and fill to build this 'piece' up on my lid :D

After Epoxying the trimmed and 'routed' pieces together, I was left with 2cm gaps on either side of the helmet, between the back and front pieces, additionally to these I was also left with smaller holes & gaps on the rear of the helmet where the poorly formed top met the rear plate.

I therefore decided to use Davis P40 (Fibreglass) -

http://www.halfords.com/webapp/wcs/stores/servlet/product_storeId_10001_catalogId_10151_productId_167469_langId_-1_categoryId_165625

On top of aluminium mesh to bridge the gaps -

http://www.halfords.com/webapp/wcs/stores/servlet/product_storeId_10001_catalogId_10151_productId_189682_langId_-1_categoryId_165625

Later filled with P38 -

http://www.halfords.com/webapp/wcs/stores/servlet/product_storeId_10001_catalogId_10151_productId_189482_langId_-1_categoryId_165625

Then sanded smooth to await the painting.

As you can see above, this has indeed bridged the gaps and made the helmet look more like the finished article, however as the rear and the front plates are so badly misaligned, there is something of a step between them, which I have tried to merge with a curved gradient of filler (Sorry if I dont use all of the technically correct terms here), which looks good to be :D

NOTE: the crappy ears that came with this ket stick out about 1 cm around the oxygen tubes at the bottom of the helmet so I am contemplating buying a spare ABS set of these.... but these are quite expensive - £35 !! :o (Especially on a helmet I've already been stung on)

All thats left to do now is attach the vocoder and create the chin part, which is missing (Appears to be a trait of the FX helmets)

I'll post what I mean here later.

So.... I then proceeded, extremely carefully, with a borrowed 'dremel' or cheap gypsy version therein, to cut out the bucket's frown and eyes (NOTE: if you're going to do this on a cheap fibreglass bucket, use a set of goggles and mask - i got fibreglass in my eye and it kills, plus breathing in fibreglass is a bit of a no no: http://www.scif.com/safety/losscontrol/Article.asp?ArticleID=373 )

Anyhows, lesson learned.

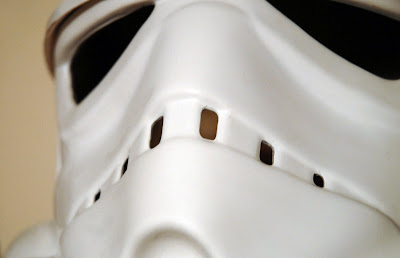

I roughly cut out the teeth after researching a number of different 'stunt' helmets (www.starwarshelmets.com), and 'dremelled' out the eyes.

This being crappy fibreglass, I then had to painstakingly sand using ripped out small folded sheets of sandpaper the teeth and then work on the eyes for hours on end, until I got the look I was after (Albeit I may have sanded a little bit to much out of the corners of the eyes.... but it still looks good to me)
